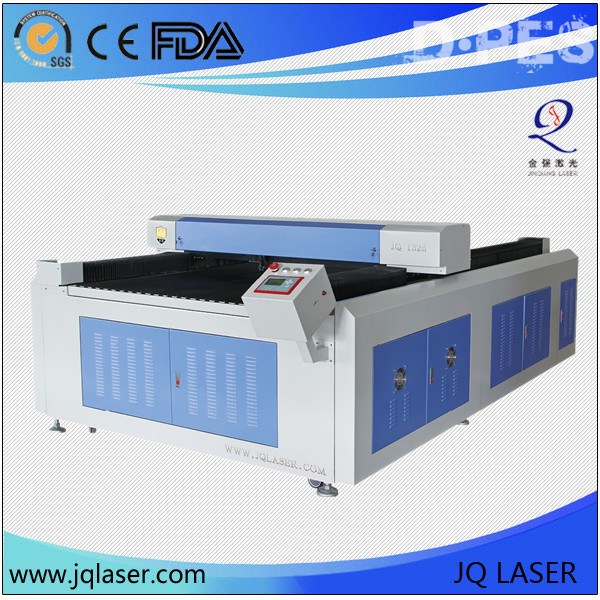

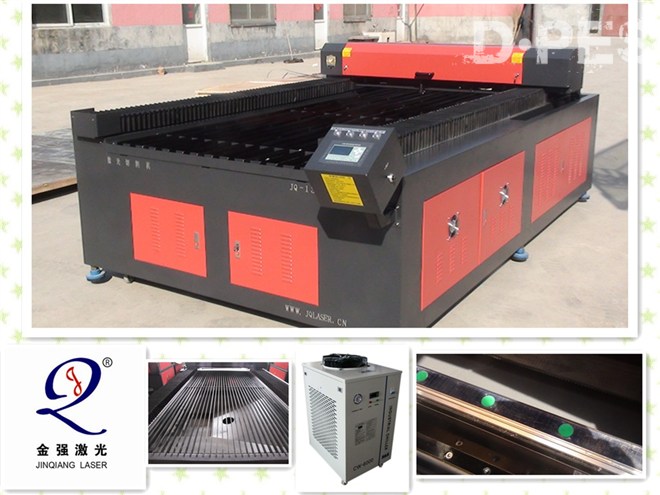

acrylic&wood&plexiglass&foam&leather CO2 laser cutting machine
1. Features of JQ1325 professional CO2 laser cutter for PVC
a. Large working area of 1300*2500mm for big materials.
b. The up to date software provides the output of original pictures, compatible with the graph formats such as CAD, CorelDraw, Photoshop,
3. Owns functions of restoring from power off, continuation on break point.
4. Adopt international linear rail, more precision.
5. With the drawer and the funnel design for collecting remnant material, it is convenient to use.
6. High quality water cooler, protect stable radiation and prolong the lift-span of laser
2.Technical Performance
|
Machine Model
|
JQ1325 CO2 laser machine
|
|
Working Size
|
1300mm*2500mm
51in*98in (L*W)
|
|
Laser Power
|
100W/150W/180W
|
|
Laser Type
|
CO2 sealed high quality, water-cooling
|
|
Driving System
|
Stepper motor
|
|
Cutting Speed
|
0-40000mm/min (0-1575 inch/min)
|
|
Engraving Speed
|
0-70000Mm/min (0-2756 inch/min)
|
|
Resetting Position Accuracy
|
≤±0.01
|
|
Power Supply
|
220V/50Hz, 110V/60Hz,
|
|
Operating Temperature
|
0-45°C
|
|
Operating Humidity
|
5-95%
|
|
Min. Shaping Character
|
English 1.0*1.0mm
|
|
Operating System
|
PCI OR USB (DSP 6535)
|
|
Graphic Format Supported
|
BMP, PLT, AI, DST, DXF
|
|
Software Supported
|
Coreldraw, Photoshop, AutoCAD, Tajima
|
|
Machine Dimension
|
3350*2150*1250mm
131*84*49in
|
|
Packing Dimension
|
3450*2250*1350mm
134*87*52inch
|
|
Net Weight
|
1100kgs
|
3.Applicabe material
acrylic, plastic, wood, MDF, die board, perspex , organic glass, rubber, leather, fabric, paper, cloth, fabric, dual-color boards. etc
4.Guarantee and after-sale service
Two year guarantee for whole machine except of laser tube and lens
24 hours technical support by e-mail, calling or door-to-door service
English software, user manual and detailed Videos CD
